חברת רדקו מייבאת ומשווקת משאבות, ברזים, מגופים, מערבלים ומפעילים אוטומטיים תוצרת KSB גרמניה.
חברת KSB הינה מהיצרנים המובילים של משאבות ושסתומים בעולם. מחזור המכירות של החברה הינו מעל 2200 מיליון יורו בשנה.
חברת KSB מעסיקה מעל ל-15,000 עובדים ב-83 החברות השונות תחת הקבוצה.
הניסיון הרב של החברה בייצור של משאבות ושסתומים מאפשר ללקוחות לקבל מגוון רחב של פתרונות שאיבה והולכה של נוזלים ואת המוצר המושלם לצרכים שלהם.

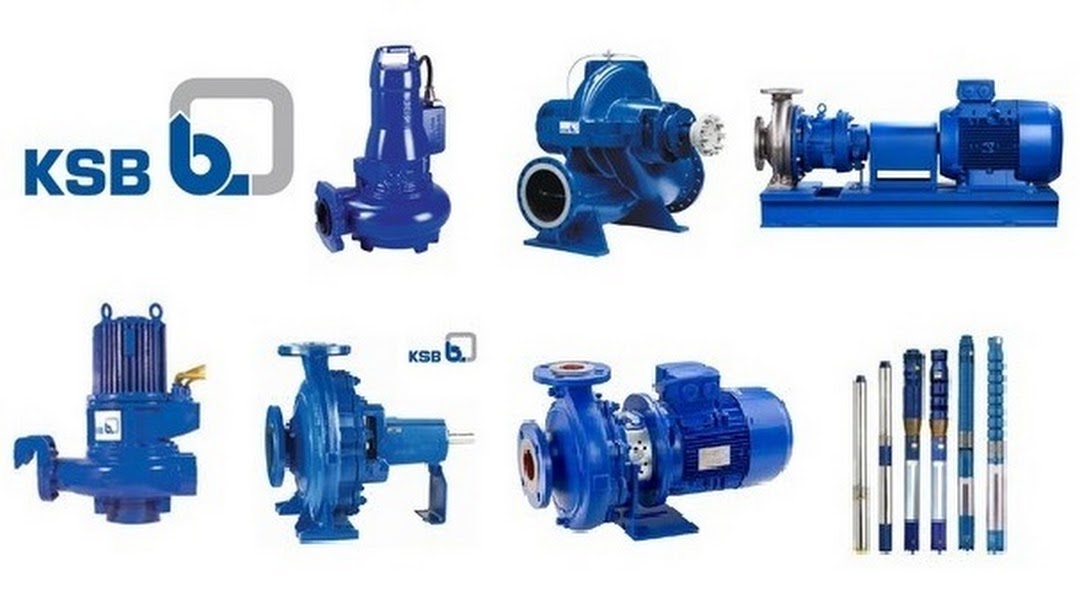

סוגי המשאבות:



Ama-Drainer 400/500

Vertical single-stage fully floodable submersible motor pumps in close-coupled design, IP68, with or without level control, max. immersion depth: 7 m.



Ama-Drainer N

Fully floodable, vertical, close-coupled single-stage submersible motor pumps, IP 68, with or without level control, for a maximum immersion depth of 2 m.



Ama-Porter F, S

Vertical single-stage fully floodable submersible waste water pump in close-coupled design (grey cast iron variant), non-explosion-proof.



Amacan K

Wet-installed submersible motor pump for installation in discharge tubes, with channel impeller, single-stage, single-entry. ATEX-compliant version available.



AU

Horizontal, self-priming centrifugal pump, open or semi-open impeller, adjusted via wear plate, with mechanical seal, ATEX-compliant version available.



B Pump

Multistage vertical turbine pump with closed impellers, column section with bearing assembly, shaft sleeve, shaft sealed by gland packing, driven by electric motor or diesel engine.



Calio-Therm NC

Maintenance-free, fixed speed glandless drinking water circulator pump, screw-ended, electric motor with multiple fixed speed levels, for use in drinking water supply systems and hot water supply systems.



CHTC

Horizontal high-pressure barrel-type pumps with radial impellers, single-entry and double-entry, multistage, with flanges or weld end nozzles to DIN and ANSI.



CHTRa

Horizontal axially split single-entry multistage between-bearings volute casing pump with single casing and back-to-back impeller arrangement to API 610 (ISO 13709), type BB3. First stage optionally available in double-entry design for low NPSH requirements. ATEX-compliant version available



Comeo

Multistage, horizontal, close-coupled centrifugal pump



CPKN

Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to ISO 2858 / ISO 5199. Also available as a variant with "wet" shaft, conical seal chamber and/or semi-open impeller (CPKNO). ATEX-compliant version available.



Emporia CP

Single-stage centrifugal pump in close-coupled design, extremely quiet operation, for use in domestic, public and industrial applications



Etabloc SYT

Volute casing pump for horizontal or vertical installation, back pull-out design, single-stage, with ratings to EN 733, radially split volute casing, replaceable casing wear rings, volute casing with integrally cast pump feet, closed radial impeller with multiply curved vanes, single mechanical seal to EN 12756, product-lubricated carbon plain bearing, grease-lubricated radial ball bearing in the motor housing, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system, ATEX-compliant version available.



Etaline

Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.



Etanorm

Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation with the KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.



Etaprime B

Horizontal self-priming volute casing pump, single-stage, with open multi-vane impeller, close-coupled; pump shaft and motor shaft rigidly connected; ATEX-compliant version available.



HPK

Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to ISO 2858 / ISO 5199. Optional TRD type testing by TÜV. ATEX-compliant version available.



ILN

Vertical in-line centrifugal pump with closed impeller and mechanical seal. ILNS fitted with an auxiliary vacuum pump, ILNE with ejector. The back pull-out design allows the impeller to be dismantled without removing the pipes and the motor. ATEX-compliant version available.



KWP

Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and free-flow impeller. ATEX-compliant version available.



Magnochem

Horizontal seal-less volute casing pump in back pull-out design, with magnetic drive, radial impeller, single-entry, single-stage. Design to DIN EN ISO 2858 / ISO 5199 or ISO 15783 / API 685 (centreline mounting, ASME flanges and permissible nozzle forces). ATEX-compliant version available.



Movitec H(S)I

Multistage horizontal high-pressure centrifugal pump



MZ

Self-priming multistage liquid ring pump in close-coupled (EZ B) or long-coupled (EZ L) design, with mechanical seal.



RC

Helical gear pump, self-priming, with bypass valve, close-coupled design, for horizontal installation with baseplate or vertical installation. With mechanical seal.



RPH

Horizontal radially split volute casing pump in back pull-out design, to API 610, ISO 13709 (heavy-duty), type OH2, with radial impeller, single-entry, single-stage, centreline pump feet; with inducer, if required. ATEX-compliant version available.



Sewatec

Volute casing pump for horizontal or vertical installation, with free-flow (F), single-channel (E), multi-channel (K) or diagonal single-vane impeller (D), discharge flange to DIN and ANSI standards. ATEX-compliant version available.



Vitacast

Service-friendly volute casing pump with magnetless KSB SuPremE motor of efficiency class IE4/IE5 and PumpDrive variable speed system. All wetted components are made of 1.4404/1.4409 (AISI 316L/CF3M) stainless steel. Designed with very little dead volume; open impeller, electropolished surface, excellent efficiency. Hygienic design for the highest requirements on cleanability (CIP/SIP-compatible), certified by the TNO Nutrition and Food Research Institute to EHEDG standards. All materials comply with FDA standards and EN 1935/2004. ATEX-compliant version available.



WKT

Vertical, multistage, barrel pull-out, ring-section pump for underfloor installation on a base frame in the pump sump, radial impellers, single-entry suction impellers, flanges to DIN or ANSI standards.
